Raytheon Anschütz offers advanced ECDIS (Electronic Chart Display and Information System) functions for safe and simple voyage planning and route monitoring.

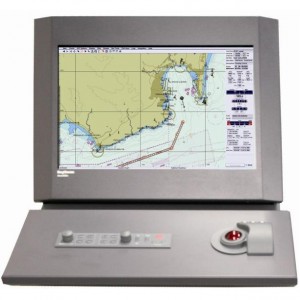

Synapsis ECDIS provides a clear presentation of all information needed for safe route monitoring and anti-grounding control. Its intuitive operation is supported by offering easy-to-operate menustructures (known from Windows applications) and comfortable server functionalities.

Route planning becomes simple and efficient with the new automatic route planning function and with the optional integrated weather overlay. Situational awareness during route monitoring is supported by an integrated conning panel, look ahead zones, optional radar video overlay, or autopilot remote control with curved heading line display.

Furthermore, various data such as NAVTEX and AIS, which have formerly been located at separate panels on the bridge, can be integrated and displayed or operated on the Synapsis ECDIS screen. Together with Anschütz NP 5000 autopilots, the Synapsis ECDIS can also form a track control system category C.

In addition to IHO/IMO compliant vector electronic navigation charts (ENC), Synapsis ECDIS also displays raster charts (ARCS). Of course, Synapsis ECDIS complies with latest requirements such as IEC/EN 61174 (performance standards for ECDIS), IEC/EN 61162-1, IEC/EN 60945, MED 96/998/EC (wheelmark) and other relevant standards of IMO, IHO and IEC.

Synapsis Workstations are available as a stand-alone system or as part of a multifunctional workstation in combination with type-approved radar, ECDIS and/or conning. All workstations are based on the innovative and advanced Synapsis NX system architecture, including the standardized, ultra-compact Small Marine Computer with fan-less design and solid-state disk, and allow for easy upgrades and extensions.

For ECDIS retrofit, please refer to the cost-efficient ECDIS 24 retrofit package.

• Route planning and route monitoring
• Automatic route planning function
• Integration of Weather Charts and all relevant parameters
• Online updating of charts
• Sharing of charts, updates and routes in configurations with more than one ECDIS
• Automatic selection of navigation charts relative to position with both ENC and ARCS charts
• Display of AIS targets (with vectors for heading and speed); AIS-server function
• Input of voyage related AIS data on the ECDIS screen
• Integration of Navtex messages
• Weather data and forecast (option)
• Radar video overlay (option)
• Tender tracking function (option)
• Track control in conjunction with autopilot series NP 5000 in accordance with the IEC 62065
• Curved heading line with with autopilot series NP 5000
• Recording and output of relevant voyage information in accordance with IMO standard
• Powerful, ultra-compact processor without moving parts

Together with training partners around the world Raytheon Anschütz provides shore-based and online ECDIS Training.

For more information concerning the latest version of the Raytheon AnschützSynapsis Workstation for ECDIS – please download the brochure!

Synapsis Workstation for ECDIS(PDF)
